LINEAR_BOOTSTRAP

Published:2009/7/23 22:27:00 Author:Jessie | From:SeekIC

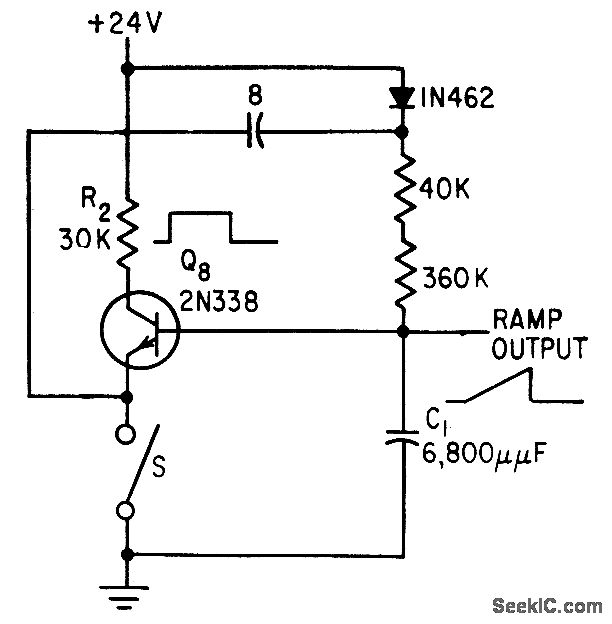

Charging current of C1 is kept constant, resulting in high linearity of ramp output. Positive-going square wave is on collector of Q8 while ramp is being generated.-D. A Williams Jr., Transistors Ruggedize Airborne Telemetry Keyer, Electronics, 31:37, p 81-83.
