LEVEL_DETECTOR

Published:2009/7/16 20:51:00 Author:Jessie | From:SeekIC

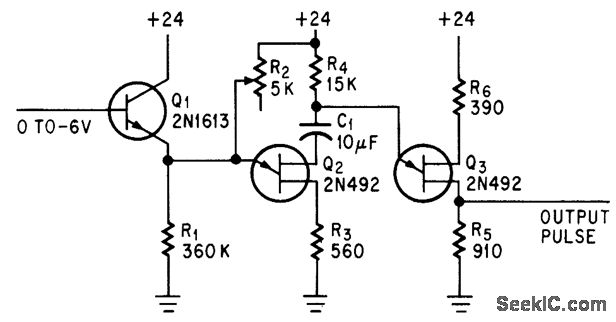

Provides constant-width pulses at fixed repetition rate whenever input signal exceeds predetermined level. Maximum current drawn from signal source is only 35 microamp.-J. G. Peddie, Two Unijunctions Form Low-Cost Level Detector, Electronics, 39:8, p 94.
