JFET_Pierce_crystal_oscillator

Published:2009/7/24 8:59:00 Author:Jessie | From:SeekIC

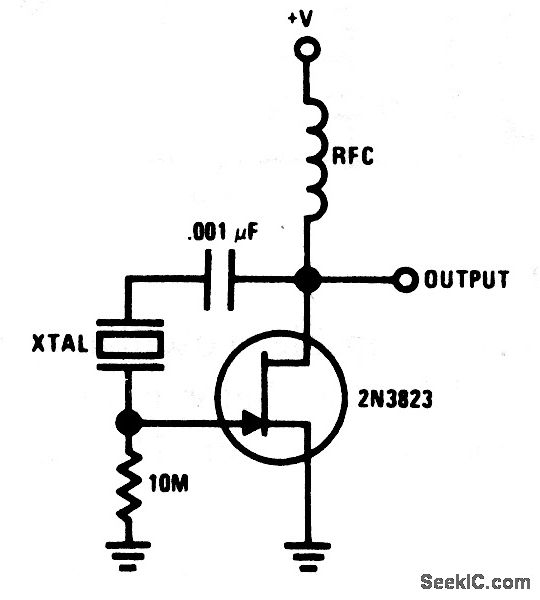

This circuit allows a wide frequency range of crystals to be used without circuit modification. Because the JFET gate does not load the crystal, good Q is maintained, which thus ensures good frequency stability. National Semiconductor, Linear Applications Handbook, 1991, p. 106.
