Infrared headphones receiver circuit

Published:2012/10/11 21:17:00 Author:muriel | Keyword: Infrared, headphones, receiver | From:SeekIC

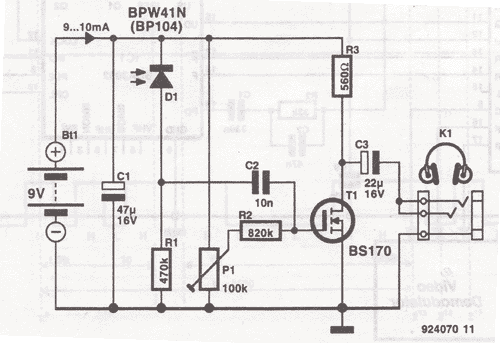

Use this infrared headphones receiver with the ir headphones transmitter.Use 600Ω headphones. BPW41N and BP104 have a filter for visible light and are centered on 950nm at 250C.At normal light illumination and 3 to 4 meters distance the audio distorsion were 1 – 2%, wich is not bad for such a simple ir headphones receiver schematic IR headphone receiver circuit diagram
