Independent_time_delay

Published:2009/7/24 6:00:00 Author:Jessie | From:SeekIC

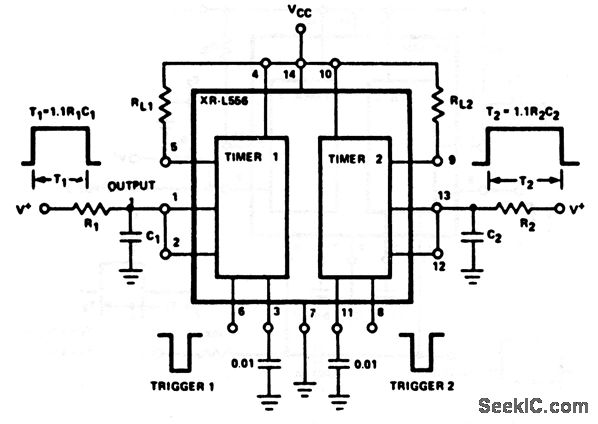

This circuit uses both sections of an XR-L556 dual timer to produce two independent time delays. Each section is used separately in the monostable mode to produce respective time delays T1 and T2. EXAR Corporation Databook, 1990 , p. 5-221.
