INSULATION_RESISTANCE_TESTER

Published:2009/7/22 20:33:00 Author:Jessie | From:SeekIC

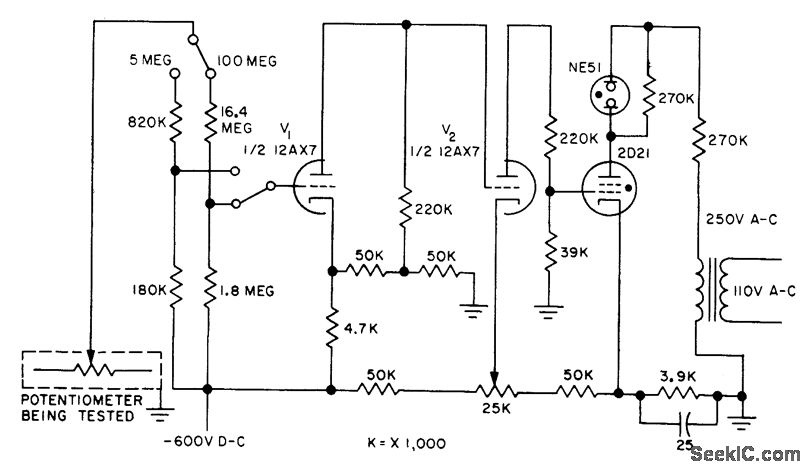

Amplifiers and thyratron give go-no-go indication of insulation resistance. Used in production testing of potentiometer-type pressure-sensing instruments over their operating ranges.-C. N. Boode and C. E. Calohan, Analog Comparator for Production Testing, Electronics, 31:13, p 47-49.
