(Hitachi) CMT2998 protection circuit

Published:2011/5/29 8:44:00 Author:Christina | Keyword: Hitachi, protection circuit | From:SeekIC

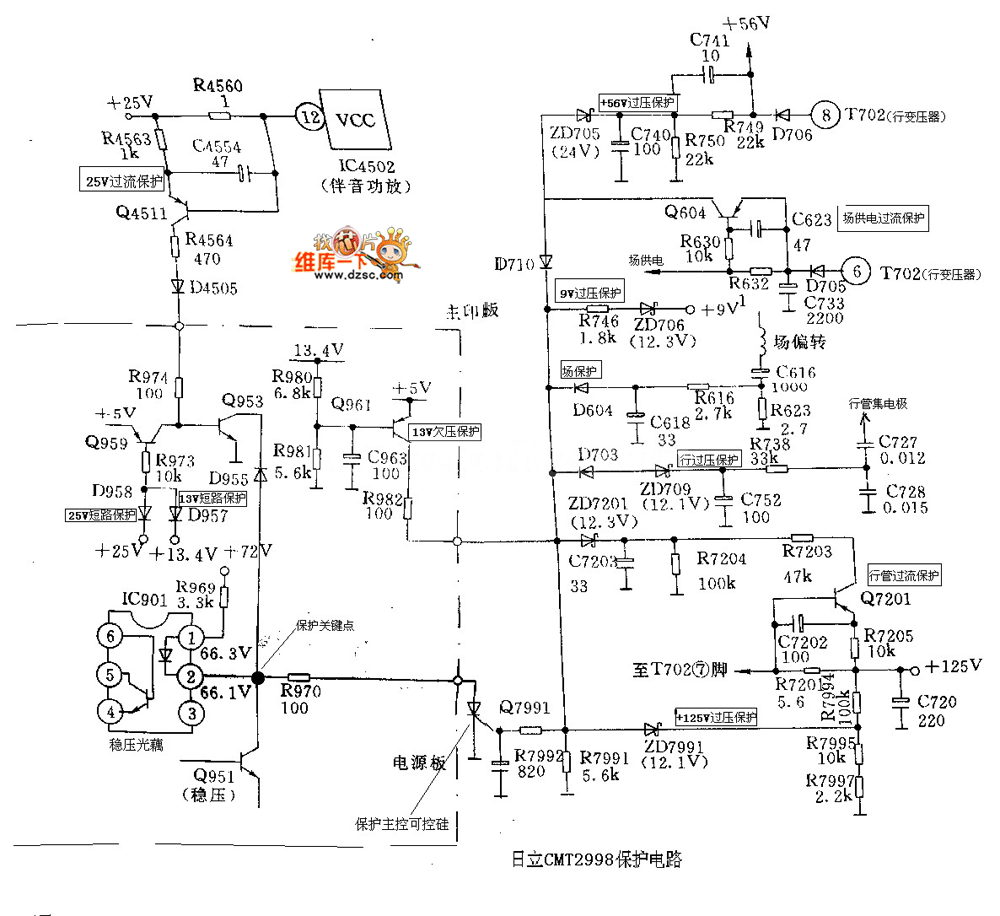

The (Hitachi) CMT2998 protection circuit is as shown in the figure:
