HIGH_LINEARITY_SAWTOOTH

Published:2009/7/23 22:25:00 Author:Jessie | From:SeekIC

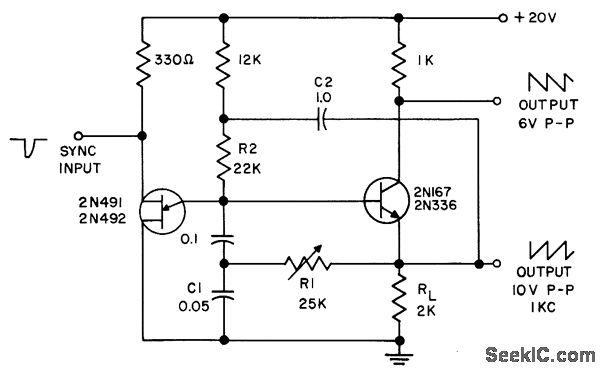

Requires only single positive supply. Npn transistor serves as output buffer amplifier, while R2 and C2 in bootstrap circuit improve linearity of saw tooth. R1 and C1 act as integrating network to provide second. order compensation for nonlinearity of waveform.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 319.
