FUNCTION_GENERATOR

Published:2009/7/15 3:13:00 Author:Jessie | From:SeekIC

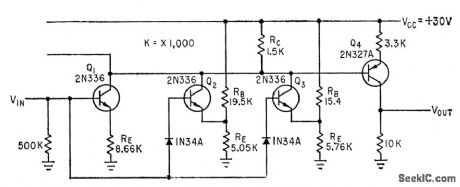

Desired function of input voltage is developed across RC and inverted by Q4. One application is for computing ground range of radar target front slant range. Transistors eliminate need for d-c amplifier.-D. R. Chick, Boosting Function Generator Output with Transistors, Electronics, 33:13, p 75-76.
