Frequency_synthesizer_using_an_external_time_base_reference

Published:2009/7/20 22:15:00 Author:Jessie | From:SeekIC

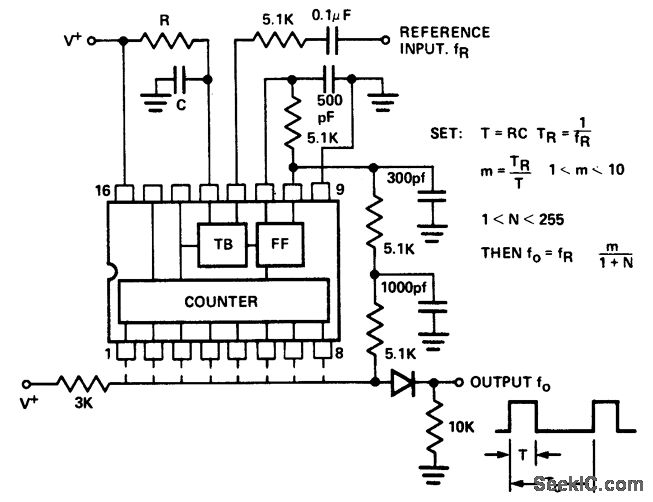

Frequency synthesizer using an external time base reference. The counter shown is an Intersil 8240 programmable timer/counter. The harmonic synchronization property of the 8240 time base can be used to generate a wide number of frequencies from a given input reference frequency (courtesy Intersil, Inc.).
