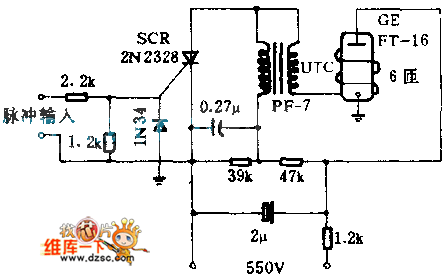

Flash alarm circuit diagram

Published:2011/9/15 22:36:00 Author:Rebekka | Keyword: Flash alarm | From:SeekIC

When people reach the safe or other metal objects, in order to get the photo of people, the sensor circuit will send a pulse to the warning circuit. Its positive edge will start work around semiconductor silicon-controlled rectifier and GE flash tube to drive the camera.
