Fancy lantern circuit diagram

Published:2011/4/12 21:33:00 Author:Rebekka | Keyword: fancy lantern | From:SeekIC

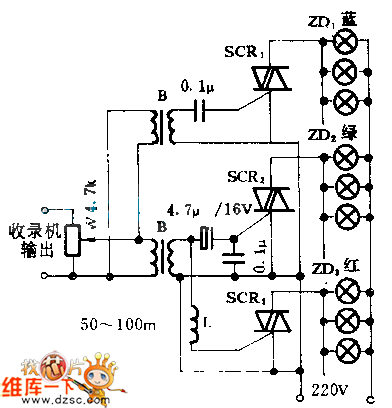

The circuit is 3-way fancy lantern circuit. It uses frequency division effect to divide the trigger triac audio signals into 3 frequency, high, medium and low. They are used for triggering SCR1，SCR2，SCR33 controlled silicon to controll blue, green, red 3-way lights. The 3 colors lights changes with the music melody beautifully.
