FUNCTION_GENERATOR_2

Published:2009/6/17 2:32:00 Author:May | From:SeekIC

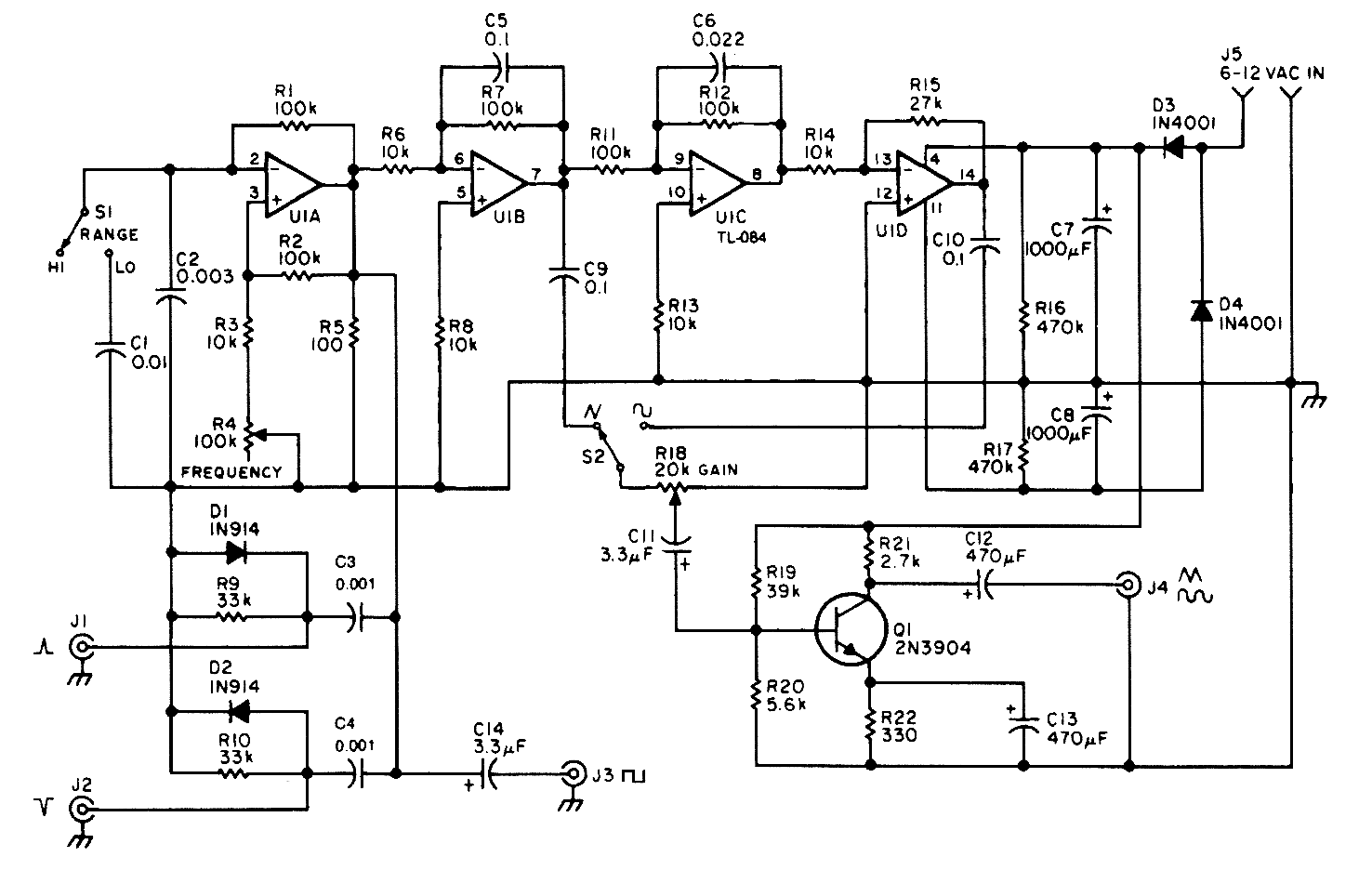

A quad op amp makes up the heart of this function generator. U1-a generates a square wave, and outputs this to J3. J1 and J2 are pulse outputs obtained by differentiating the square wave. Integrator U1-b generates a triangle-wave shaper to obtain a sine wave. Q1 is an output amplifier.
