FREE_RUNNING_PULSE_GENERATOR

Published:2009/7/16 22:02:00 Author:Jessie | From:SeekIC

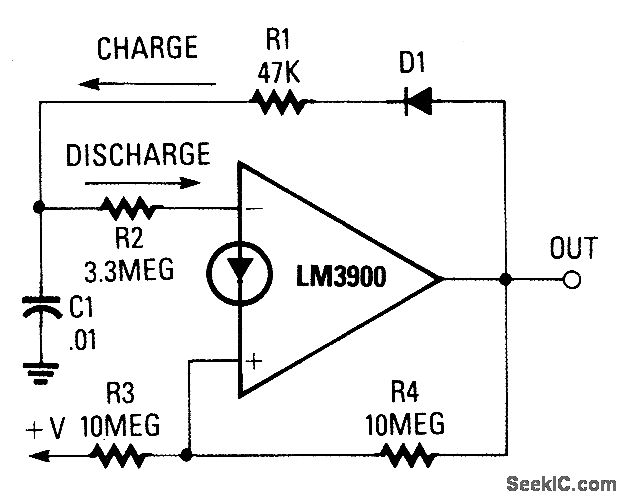

C1 alternately charges vla R1/D1 charges vla R2， which produces a dutyabout 1∶60．
