FM_stereo_processor_3

Published:2009/7/19 23:01:00 Author:Jessie | From:SeekIC

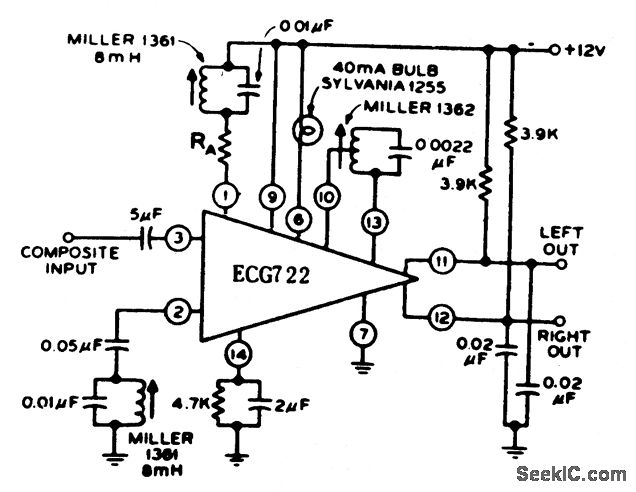

FM stereo processor. The 1 4-pin ECG722 perform the standard stereo functions of 19 kHz amplifier, frequency doubler, stereo indicator lamp driver, and stereo demodulator. Current drain at 12 volts is typically 14 mA (courtesy GTE Sylvania Incorporated).
