FM_stereo_processor

Published:2009/7/19 22:57:00 Author:Jessie | From:SeekIC

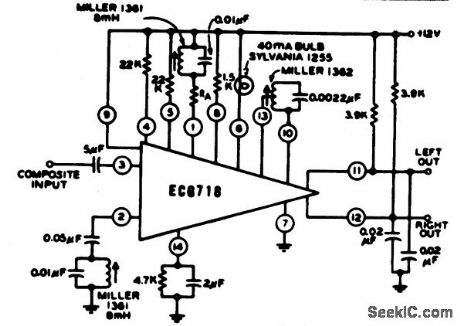

FM stereo processor. Supply voltage is typically +12 volts. The ECG718 is a 14-pin DIP with the functions of a 19 kHz amplifier, frequency doubler, stereo indicator lamp driver, audio mute, stereo/mono switch, and stereo demodulator (courtesy GTE Sylvania Incorporated).
