FM_IF_amplifier_for_FM_broadcast_receiver

Published:2009/7/19 23:04:00 Author:Jessie | From:SeekIC

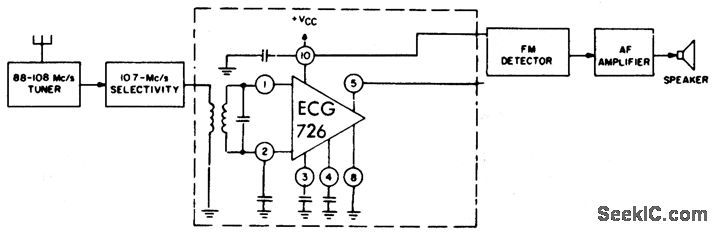

FM IF amplifier for FM broadcast receiver.Supply voltage can be between 6 and 12 volts,the typical being 7.5 volts,Voltage gainis between 55 and 67 dB,depending on the IF(courtesy GTE Sylvania Incorporated).
