FM_IF_amplifier_for_107_MHz

Published:2009/7/20 2:51:00 Author:Jessie | From:SeekIC

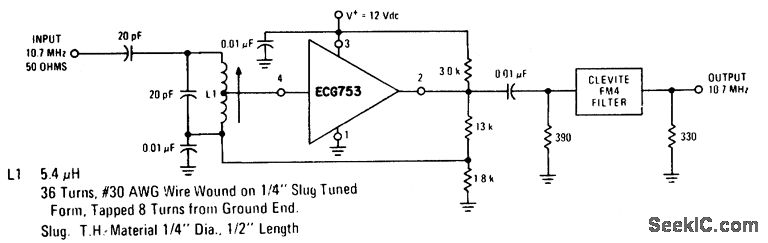

FM IF amplifier for 10.7 MHz (courtesy GTE Sylvania Incorporated).
