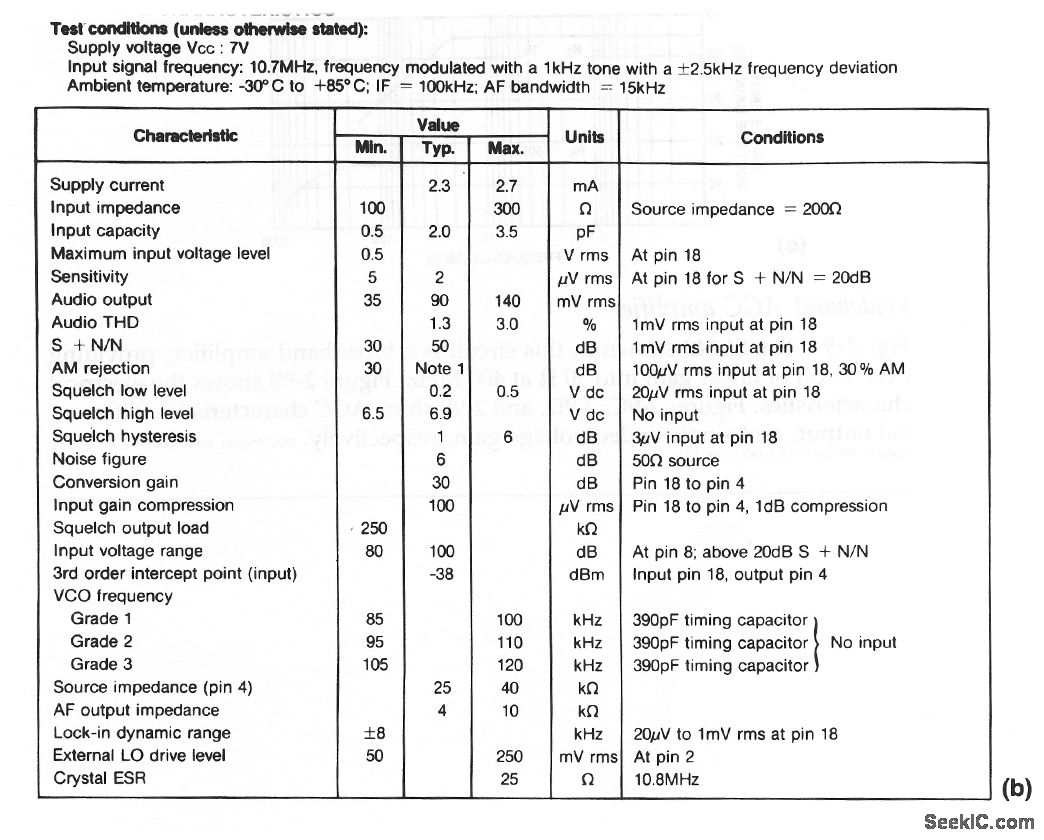

The SL6601 used in this circuit is a straight-through or single-conversion IF amplifier and detector for FM-radio applications. Figure 2-10B shows the electrical characteristics. A typical value for timing capacitor C is 390 pF.
