FAST_ACTING_LIMITER

Published:2009/7/16 1:24:00 Author:Jessie | From:SeekIC

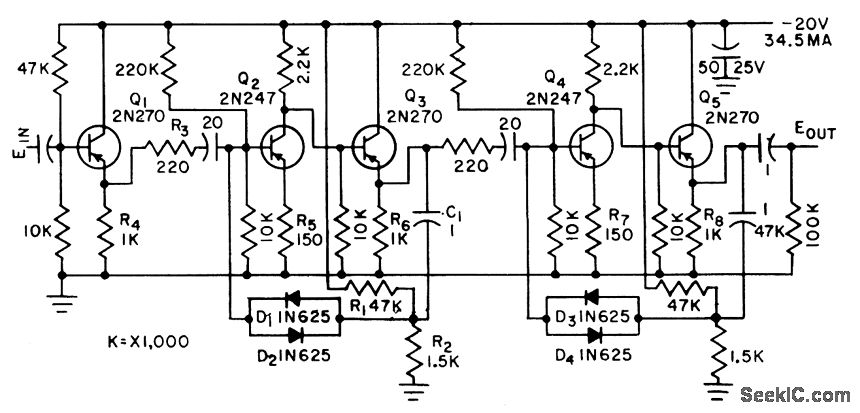

Provides compression of sine or square waves with minimum of phase distortion. Feedback paths in two direct-coupled transistor pairs improve limiting action of 100-kc pulse amplifier in which signals under 5 mv get 35 db of gain, with gain dropping to unity as signal strength increases to peak of 400 mv.-L. H. Dulberger, Pulse Amplifier with Nonlinear Feedback, Electronics, 31:45, p 86-87.
