Eye-care Lamps (the 5th)

Published:2011/5/20 1:55:00 Author:Felicity | Keyword: Eye-care Lamps (the 5th) | From:SeekIC

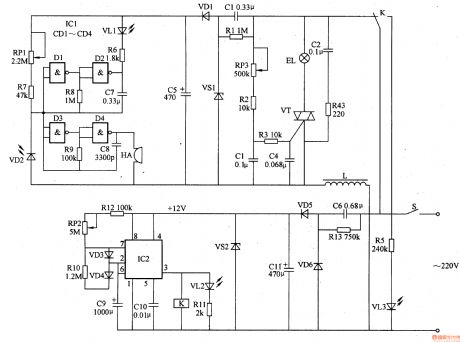

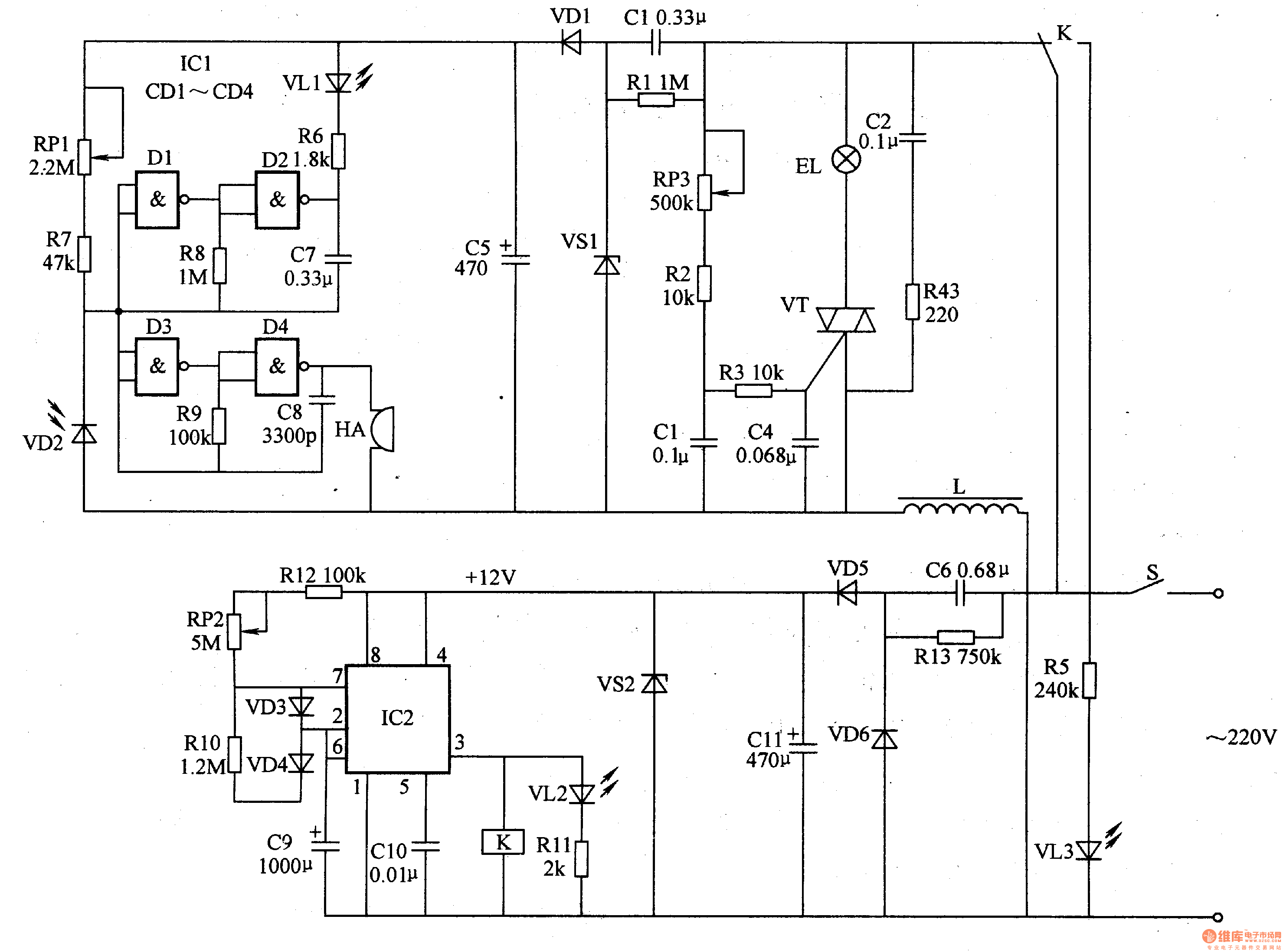

Work of the circuit The circuit consists of power circuit, timing control circuit, LED indicating circuit, light changing circuit, light examine circuit and acousto-optic alarm circuit (It is showed in picture 9-72.). Turn on the switch S and timing control circuit is supplied with +12V working voltage. And the voltage separates into two parts. One lightens the EL in the meantime the other one supplies 9V voltage to light examine circuit and acousto-optic alarm circuit. Change the value of RP1 to change the sensitivity of light examining circuit. And change the value of RP2 to change the regular timer.
