Electronic Sterilizer (the 1st)

Published:2011/5/19 8:20:00 Author:Felicity | Keyword: Electronic Sterilizer (the 1st), | From:SeekIC

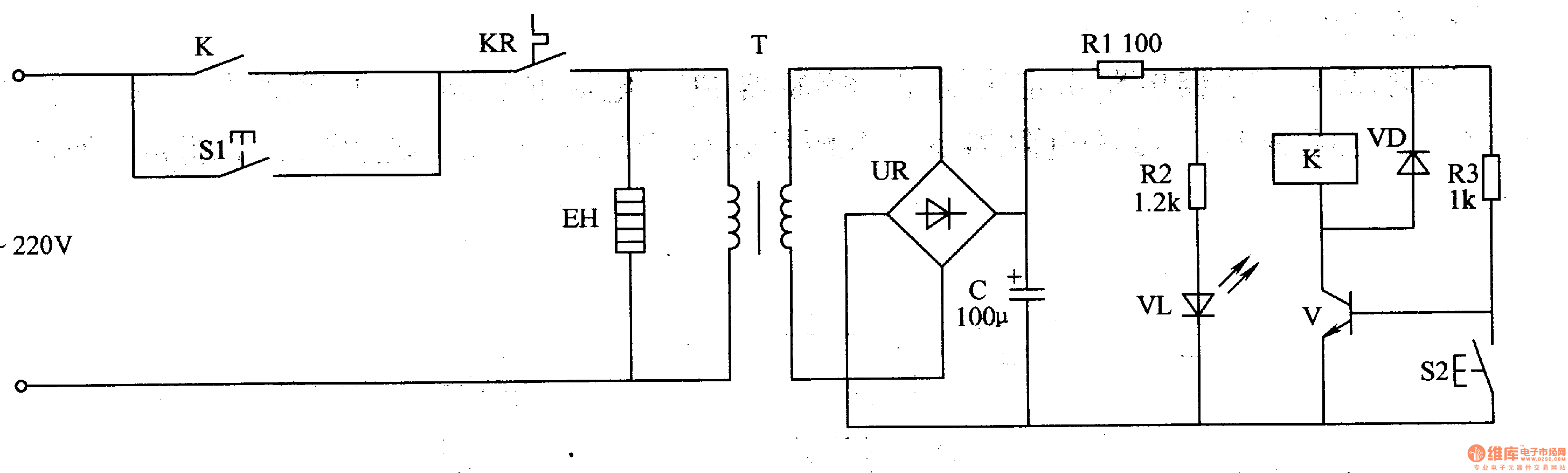

Work of the circuit The electronic sterilizer circuit consists of power circuit, control circuit. (It is showed in picture 9-96.)Process circuit and press SI. 220V AC voltage supplies 12V direct-current working voltage after being reduced, rectified, filtered, bucked and limited by T, UR, C and RI. The voltage makes V conducted and lightens VL in the meantime. If you want to stop heating in the process of heating and sterilizing you can press S2 and cut off the machine’s power.
