Work of the circuit

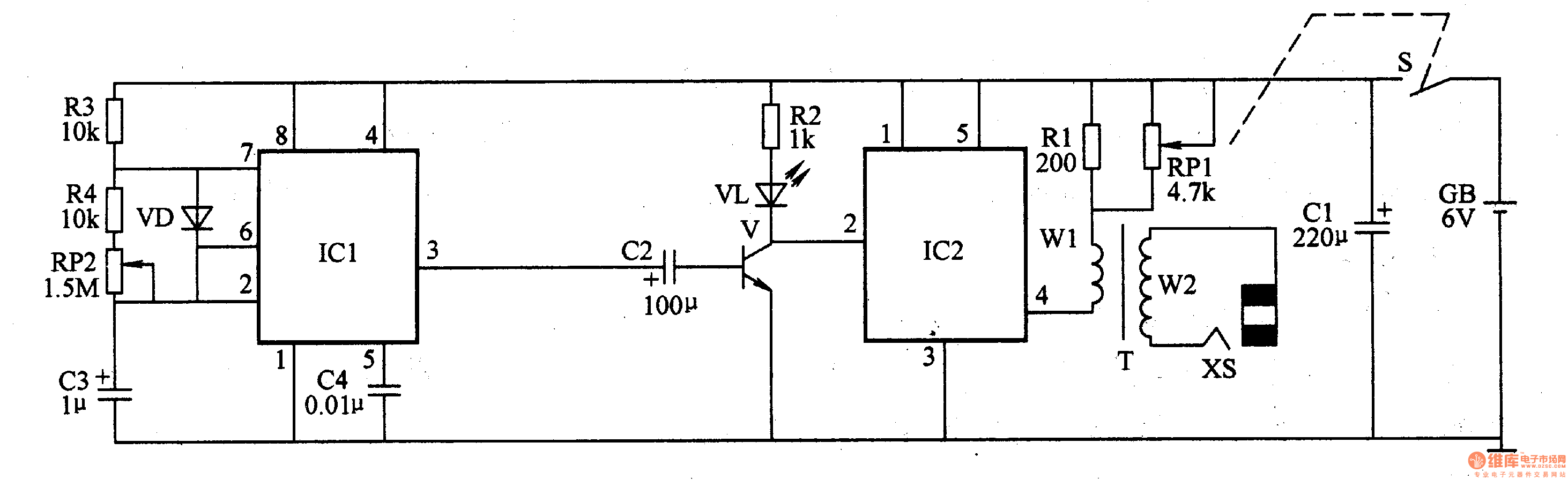

The circuit consists of low frequency OSC and electronic outputting circuit. (It is showed in picture 9-34.)
Turn on the switch S and low frequency OSC starts working. IC1’s pin 3 outputs pulse signal. The signal controls the working condition of V andIC2. When the pulse signal is right V works. When the pulse signal is negative V does not work. And VL does not shine. W2 produces pulse currency of low frequency. The pulse currency of low frequency stimulates the relevant acupoint or pain area to massage.
