Electrical Pulse Therapeutic Apparatus (the 12th)

Published:2011/7/7 9:43:00 Author:Felicity | Keyword: Electrical Pulse Therapeutic Apparatus, the 12th | From:SeekIC

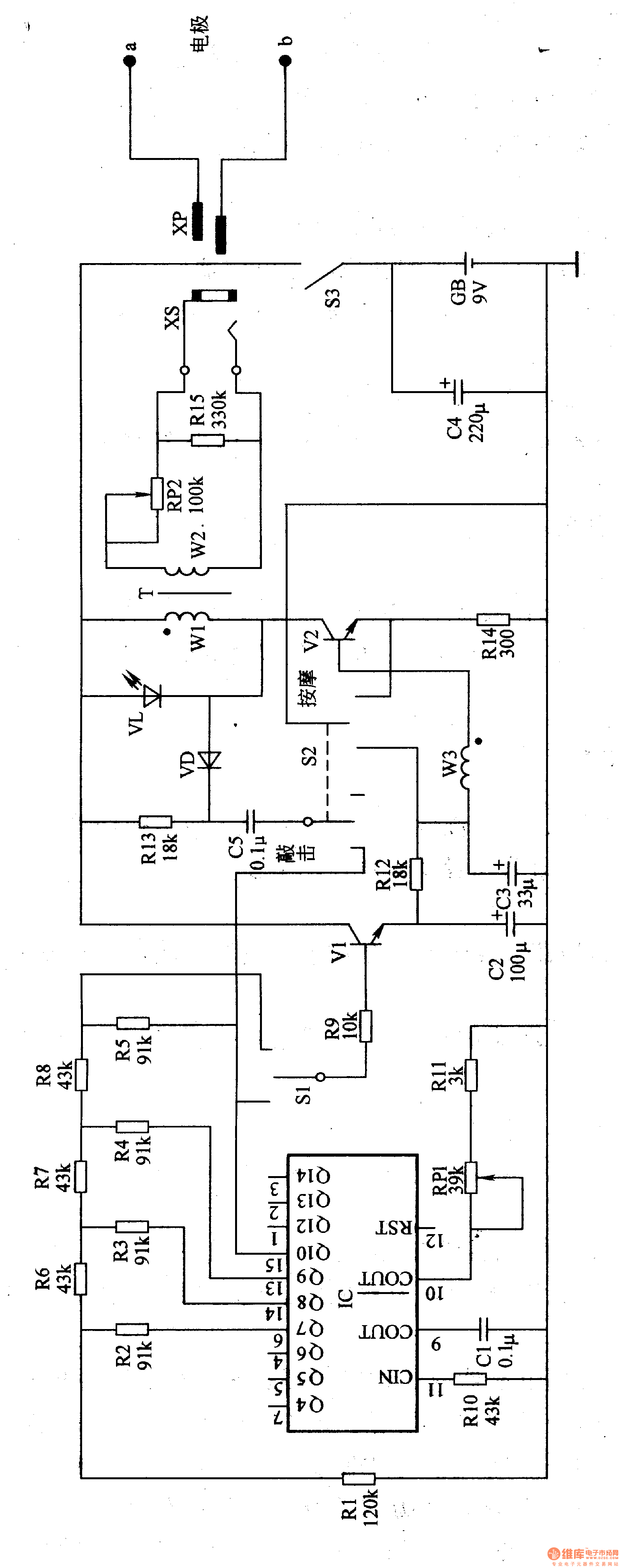

Work of the circuit The circuit consists of oscillation frequency divider, triangle wave forming circuit, pulse amplifier and booster circuit. (It is showed in the picture 9-12.) Oscillation frequency divider consists of internal oscillator divider circuit timing IC and capacitor Cl, resistor RlO, Rll, potentiometer RPl. Triangle wave forming circuit consists of IC and resistors Rl-R8. Pulse amplifier consists of switch Sl, resistor R9, Rl2, capacitor C2, transistor Vl and working mode selection switch S2. Booster circuit consists of output amplifier tube V2, step-up transformer T and potentiometer RP.
