ELECTRIC_TUNING_FOR_50_MC_F_M_RANGE

Published:2009/7/14 23:06:00 Author:Jessie | From:SeekIC

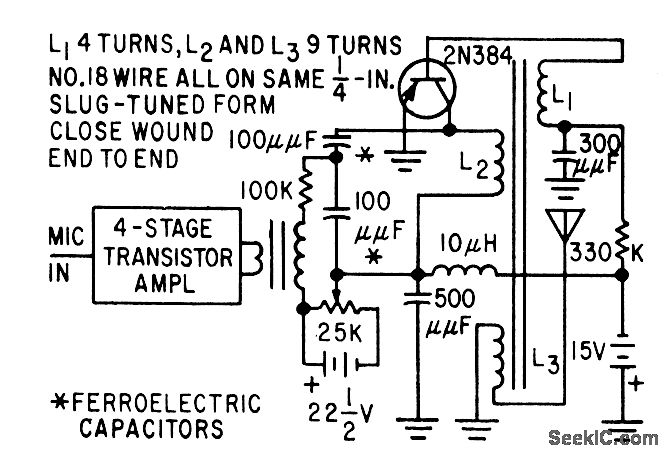

Used two voltage-tunable ferroelectric capacitors. Can be built in pocket-size plastic case when powered with hearing-aid batteries.-T. W. Butler, Jr., Ferroelectrics Tune Electronics, Circuits, Electronics, 32:3, p 52-55.
