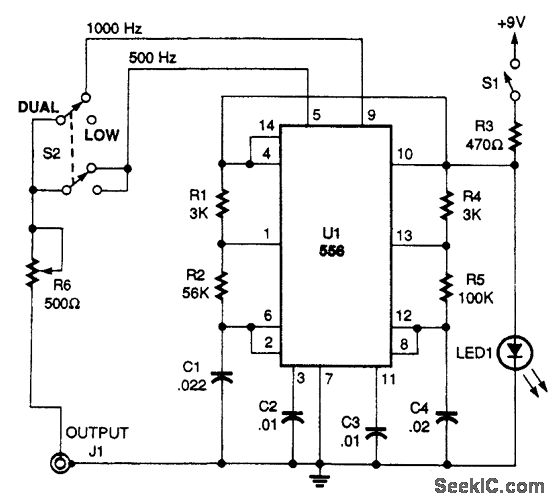

DUAL_TONE_GENERATOR_FOR_AUDIO_SERVICING

Published:2009/6/23 3:34:00 Author:May | From:SeekIC

This dual-tone generator can insert a distinctive tone in the audio section of a circuit under test.That way, you can work your way back from the speaker, stage-by-stage, to locate a faulty section.
