DUAL_PULSE_TRIGGER

Published:2009/7/21 7:57:00 Author:Jessie | From:SeekIC

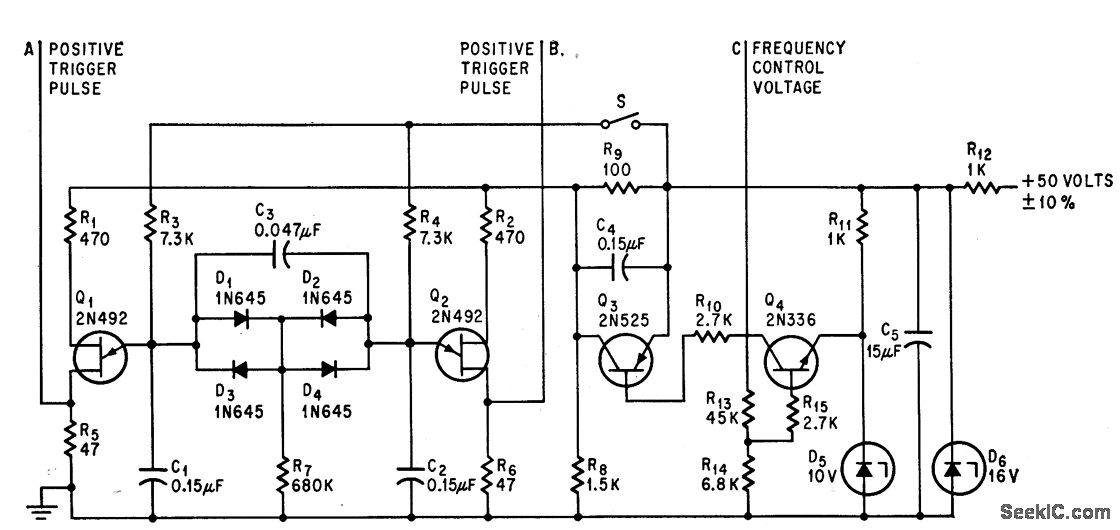

Dual triggers supply alternating pulses for driving d-c to d-c voltage converter connected to A and B. Frequency of triggering can be adjusted from 650 to 900 cps by varying base-to-base voltages of unijunction transistors.-T. Wilson, Voltage Controls Dual-Pulse SCR Trigger, Electronics, 37:28, p 62-63.
