DIODE_MIXER_FOR_TUNER

Published:2009/7/20 21:05:00 Author:Jessie | From:SeekIC

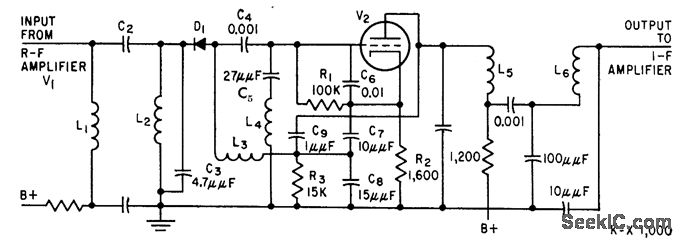

1N87 semiconductor diode mixer D1 improves isolation of r-f amplifier from 6ER5 tube V2, connected as Colpitts oscillator.-E. H. Hugenholtz, 0ne-Tube Oscillator Mixers for Tv and F-M Tuners, Electronics, 33:3, p 76-79.
