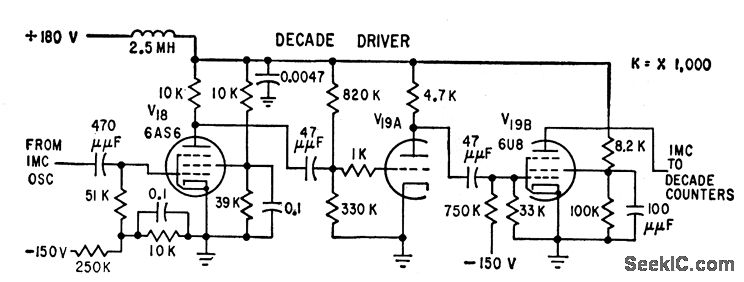

DECADE_DRIVER_FOR_FREQUENCY_MULTIPLIER_

Published:2009/7/15 2:57:00 Author:Jessie | From:SeekIC

Input signal from frequency-multiplying oscillator is stepped up to 80 v peak-to-peak, with 1-microsec rise time, for accurate triggering of decade counter.-W. O. Brooks, Stepping up Frequency with Counter Circuits, Electronics, 32:29, p 60-62.
