Crystal_oscillator_clock_circuits_for_digital_systems

Published:2009/7/24 8:58:00 Author:Jessie | From:SeekIC

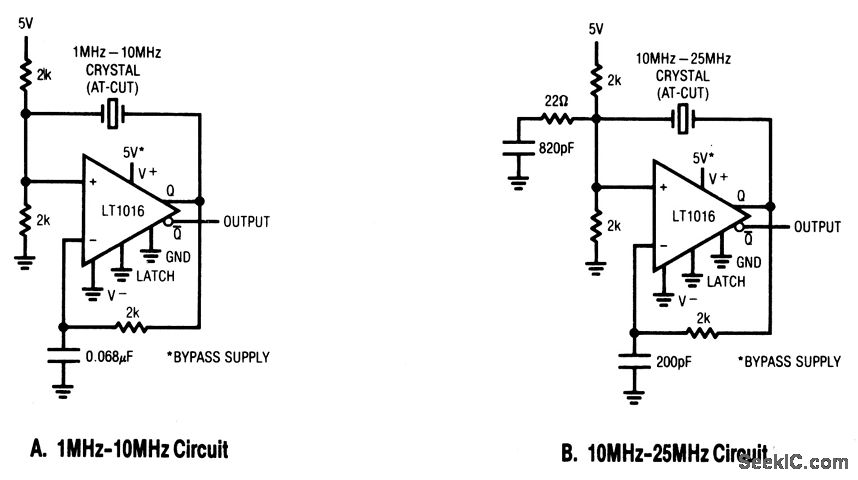

These two oscillator circuits cover the frequency range for most digital-system clock requirements. Linear Technology, Linear Applications Handbook, 1990, p. AN31-11.
