Crystal_oscillator_1_to_10_MHz

Published:2009/7/24 7:50:00 Author:Jessie | From:SeekIC

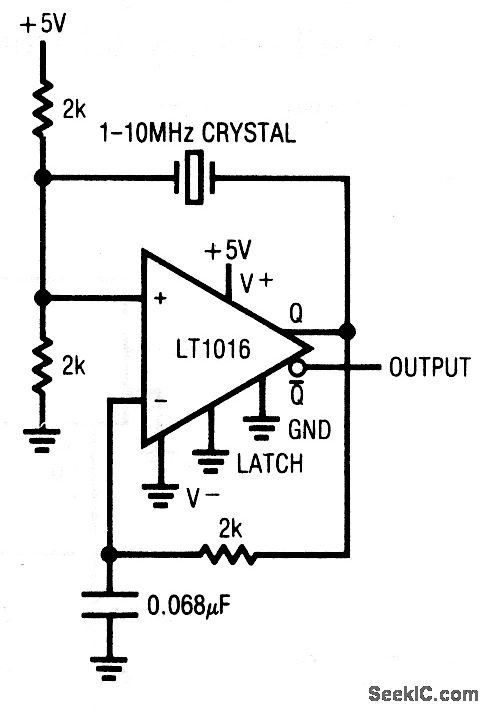

This circuit shows an LT1016, which is connected as an oscillator suitable for operation in the 1- to 10-MHz range. Linear Technology Corporaton, Linear Applications Handbook, 1990, p. AN12-3.
