Crystal_oscillator_10_to_25_MHz

Published:2009/7/24 7:52:00 Author:Jessie | From:SeekIC

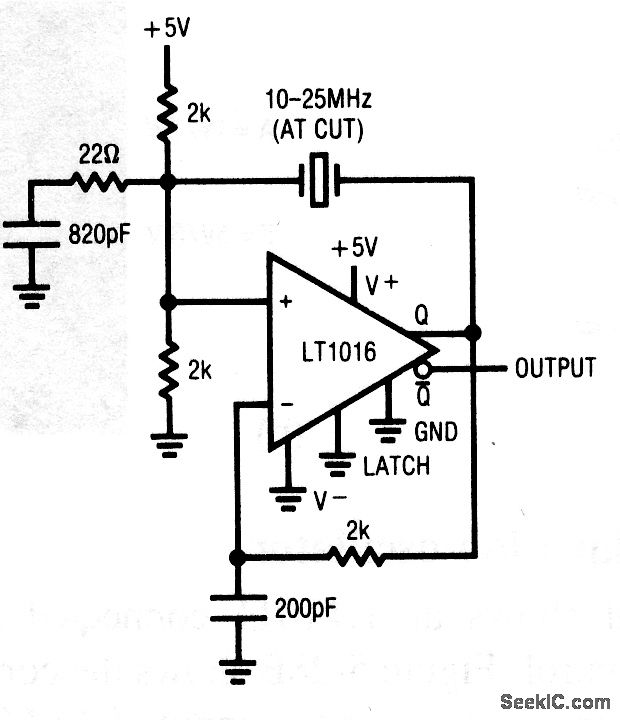

This circuit shows an LT1016 connected as an oscillator, which is suitable for operation in the 10- to 25-MHz range. Notice that the damper network (C=820 pF, R=22) prevents the AT-cut crystal from operating in the overtone mode. Linear Technology Corporation, Linear Applications Handbook, 1990, p. AN12-3.
