Comparator_with_standard_hysteresis

Published:2009/7/24 4:45:00 Author:Jessie | From:SeekIC

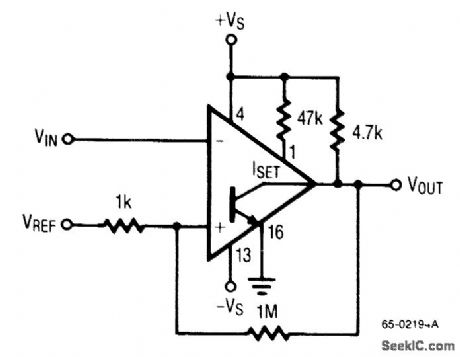

Fig. 15-26 This circuit shows an LP165/365 connected to improve hysteresis (using the standard positive feedback). Figures 15-24B and 15-25C show the pin connections, and electrical characteristics, respectively. Raytheon Linear Integrated Circuits, 1989, p. 5-40.
