Comparator_with_emitter_hysteresis

Published:2009/7/24 4:46:00 Author:Jessie | From:SeekIC

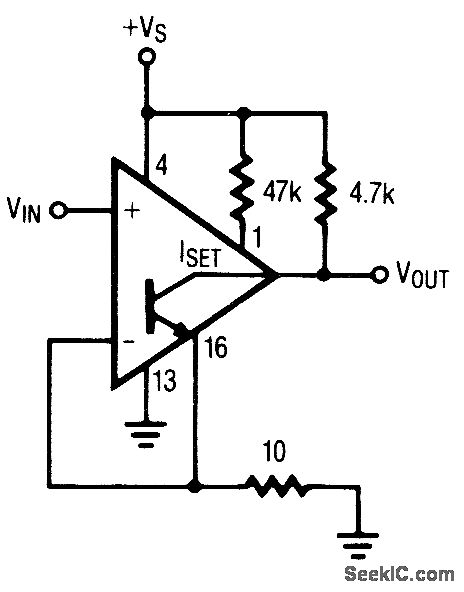

Fig. 15-27 This circuit shows an LP165/365 connected to improve hysteresis (using emitter positive feedback). Notice that this can only be used with one section of the quad LP165/365. Figures 15-24B and 15-24C show the pin connections and electrical characteristics, respectively. Raytheon Linear Integrated circuits 1989 p 5-40.
