Color_TV_subcarrier_generator

Published:2009/7/21 8:06:00 Author:Jessie | From:SeekIC

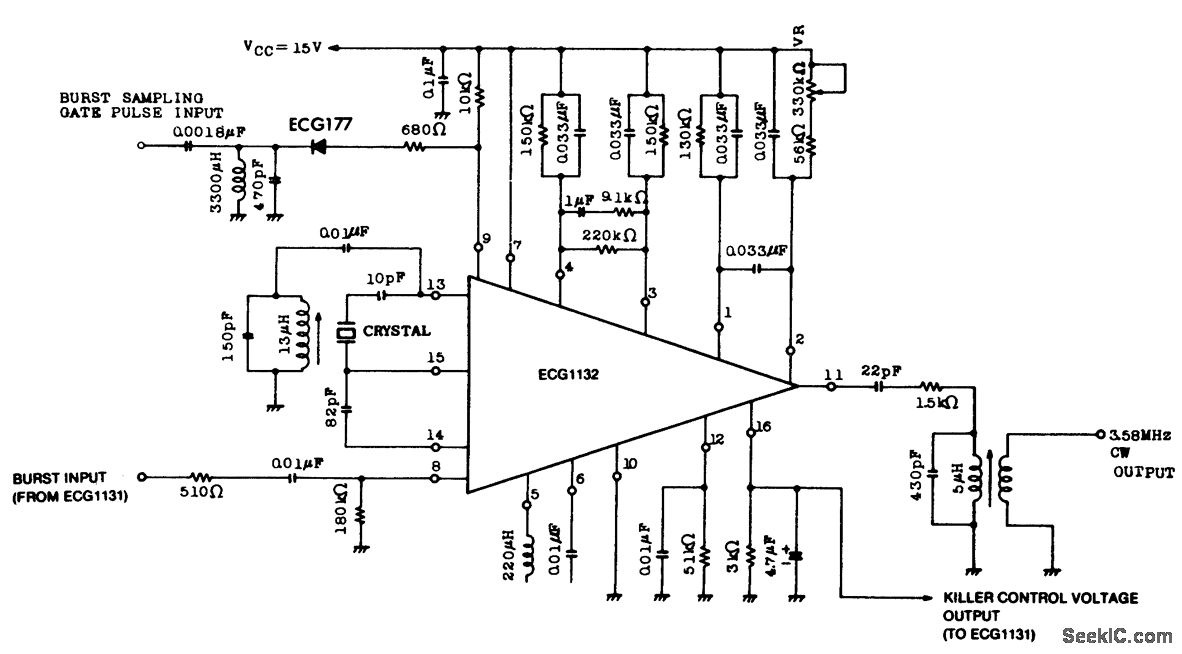

Color TV subcarrier generator. The crystal shown is for 3.58 MHz. The ECG1131 noted on the schematic is a chroma signal amplifier. The ECG1132 is a 16-pin DIP (courtesy GTE Sylvania Incorporated).
