Ceramic humidity sensor circuit diagram

Published:2011/10/20 2:32:00 Author:Rebekka | Keyword: Ceramic humidity sensor | From:SeekIC

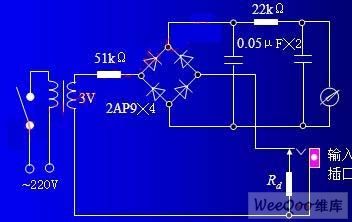

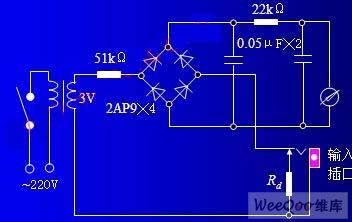

This circuit is suitable for high current ceramic humidity sensor. The wet circuit can get a strong signal, it can save the bridge and an amplifier. You can use electricity as power, as long as you choose the step-down transformer. The circuit isshown in Fig.
