CXD3008-the integrated circuit of digital signal and servo processing

Published:2011/6/13 21:27:00 Author:Borg | Keyword: integrated circuit, digital signal, processing | From:SeekIC

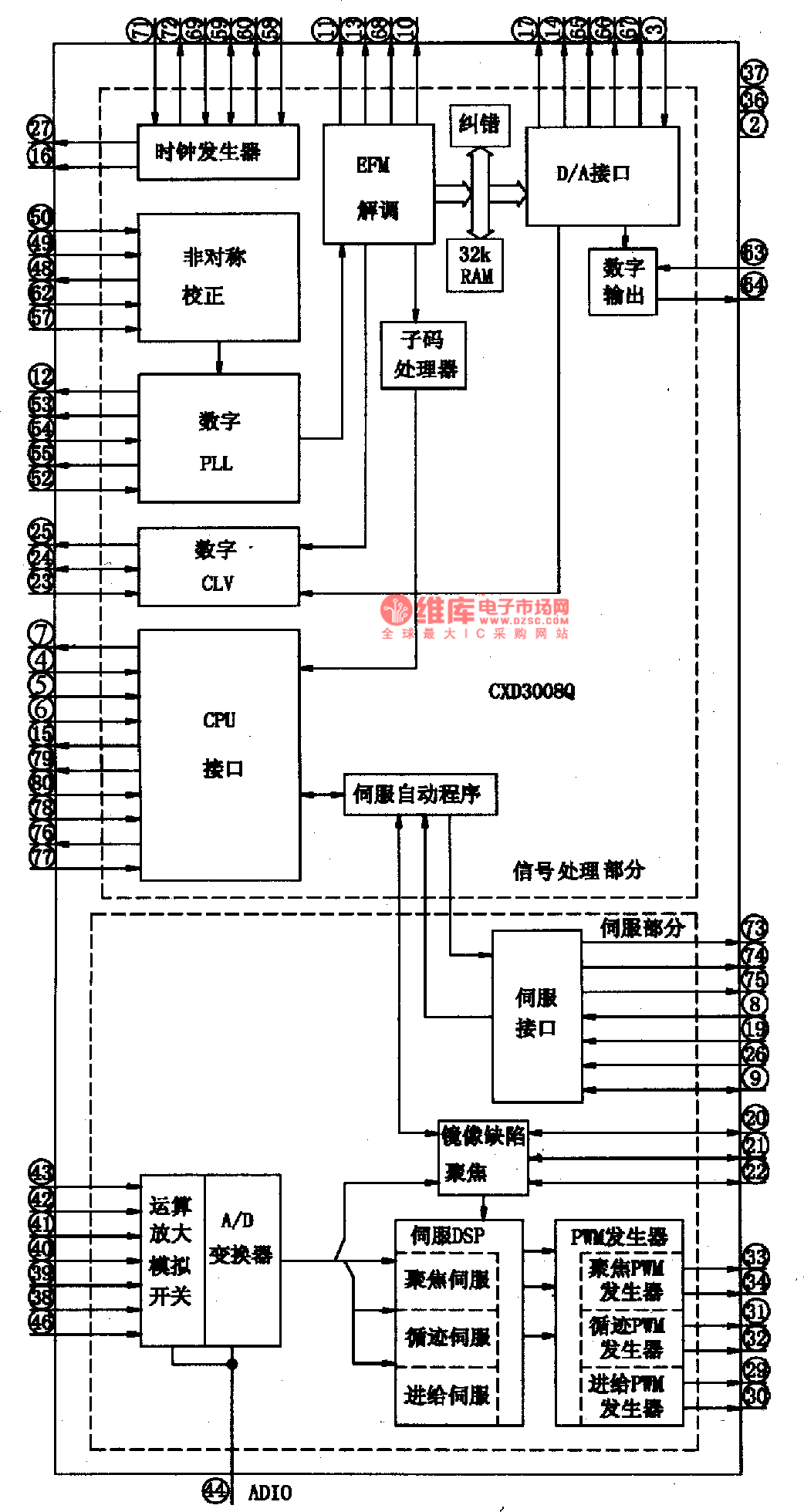

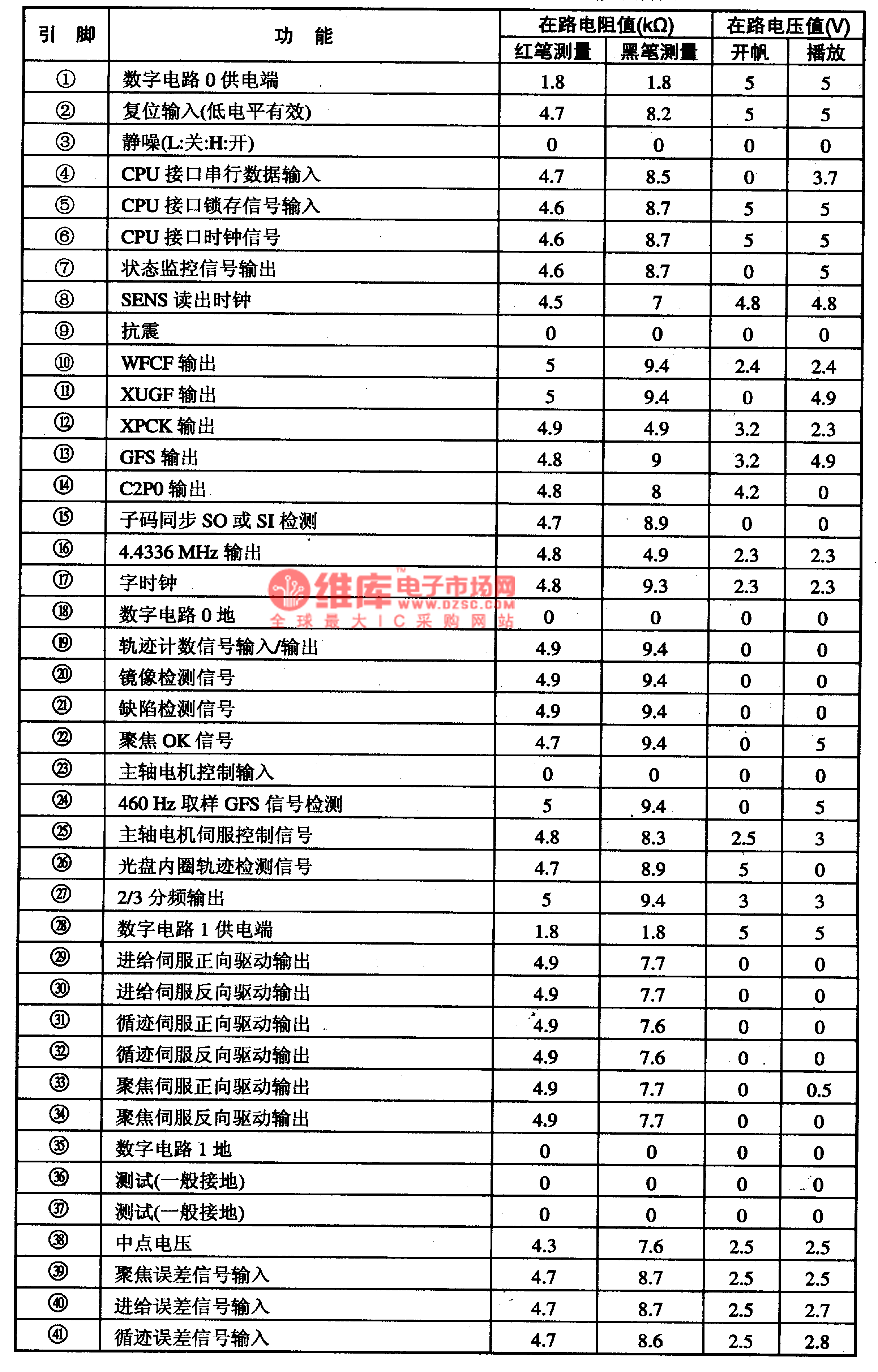

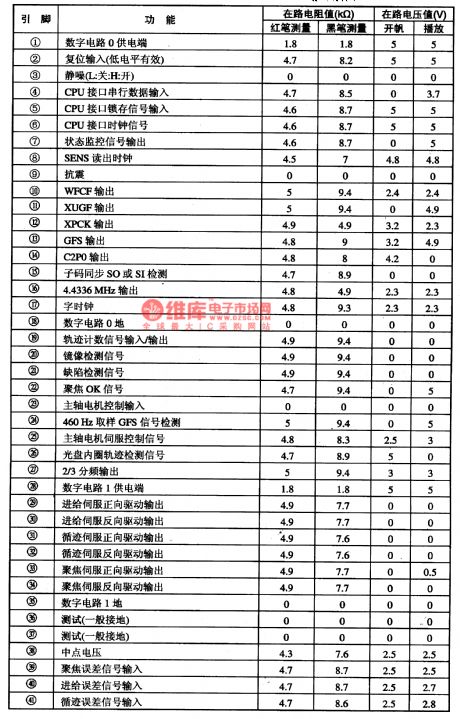

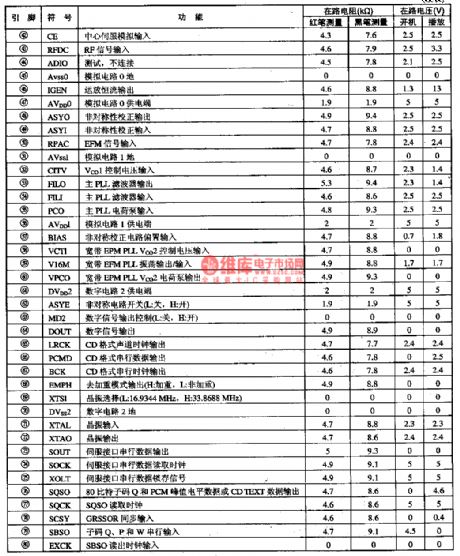

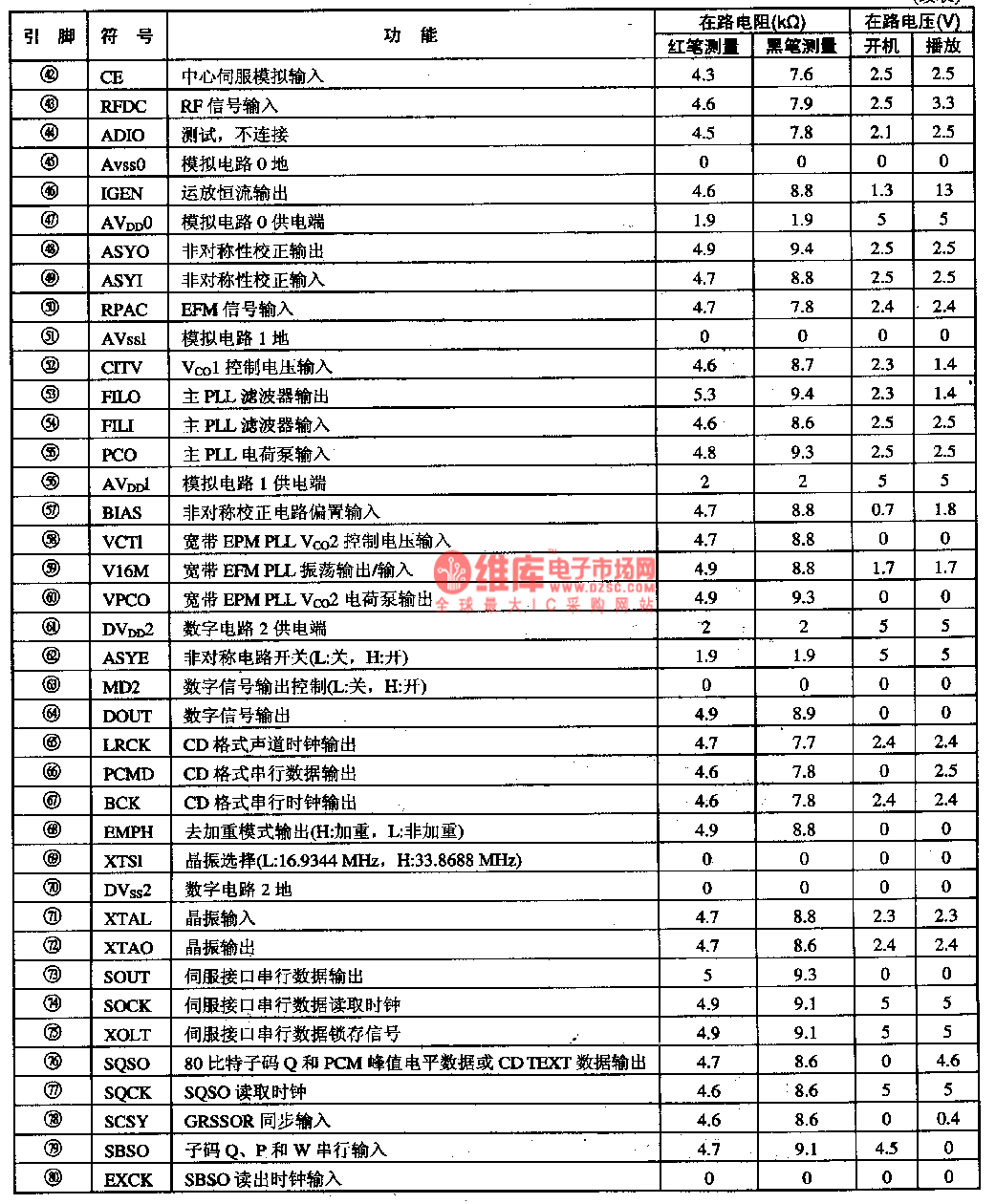

1.Function featuresCXD3008 can do demodulation to the CD, VCD and SVCD signals read out by its laser head, after handling them with super fault correcting algorithm and 32KBAM inside it, the circuit will output them as the form of CD data; in addition, it also digitally processes the signals of focus errors, tracking errors, feed errors and spindle errors in the way of repeated servo software control and wide seizing, and does auto control and auto offset control to servo circuits. 2.pin functions and data
