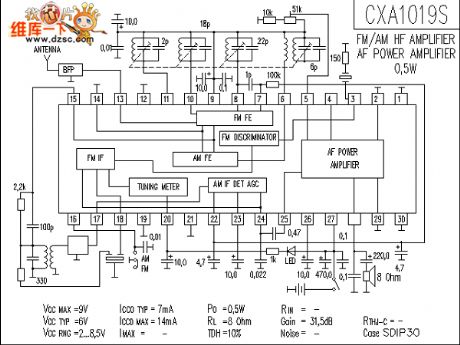

CXA1019S frequency regulation amplitude modulation radio circuit diagram

Published:2011/9/14 22:38:00 Author:Rebekka | Keyword: frequency regulation, amplitude modulation | From:SeekIC

CXA1019 is Japanese SONY company'shigh-performance, high-sensitivity dedicated FM radio Manifold AM. CXA1019 high integration includes FM / AM tuner circuit, mixer circuit, squelch circuit, power amplifier (power is between0.5 ~ 1W), DC voltage control volume, instructions and other tuned circuit. It can complete all the basic functions of the radio. Because of its low cost, superior performance, it is widely used in a variety of portable radios and electronic products.
