CX2O106A--the infrared tracking and control reception integrated circuit

Published:2011/7/12 3:14:00 Author:Borg | Keyword: infrared, integrated circuit | From:SeekIC

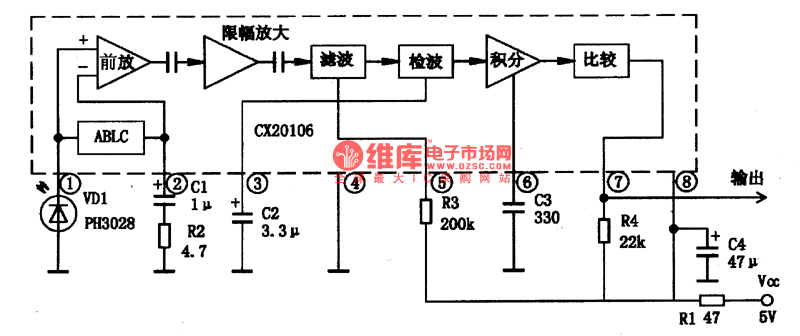

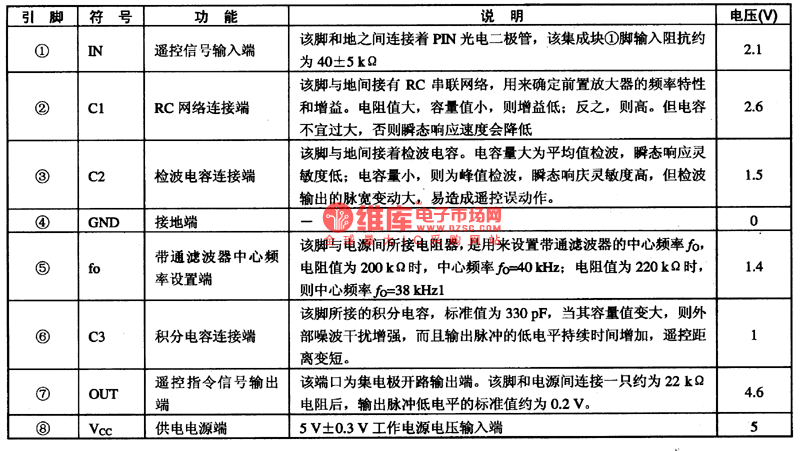

CX2O106A is an infrared tracking and control reception integrated circuit produced by Sony, Japan, which is widely used in the video, audio, air-conditioning, fan and so on as the remote signal reception circuit.1.pin functions and dataCX2O106A contains the remote signal reception, bandpass filtering, aftermath and other circuits. This IC is in 8-pin package, whose pin functions and data are listed in table 1. Table 1.pin functions and data of CX20106A2.the internal circuit and typical application circuit
