CUBE_GENERATOR

Published:2009/7/13 22:21:00 Author:May | From:SeekIC

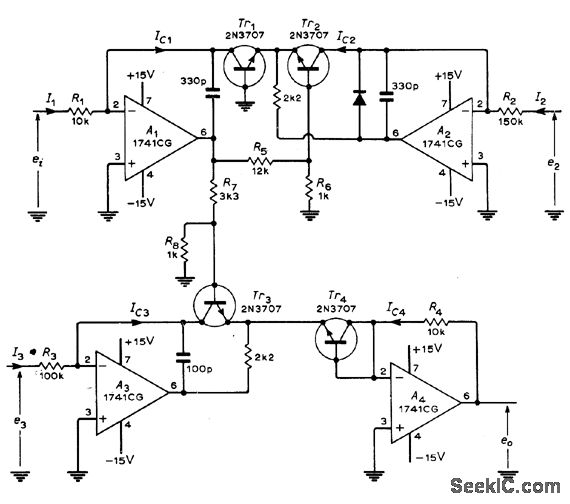

Combin ation of temperature-compensated opamp log converter and antilog converter generates output signal eo proportional to cube of input signal ei. Article gives design equations.-G. B Clayton, Experiments with Operational Amplifiers, Wireless World, Feb. 1973, p 91-93.
