CORE_SENSE_AMPLIFIER

Published:2009/7/24 2:14:00 Author:Jessie | From:SeekIC

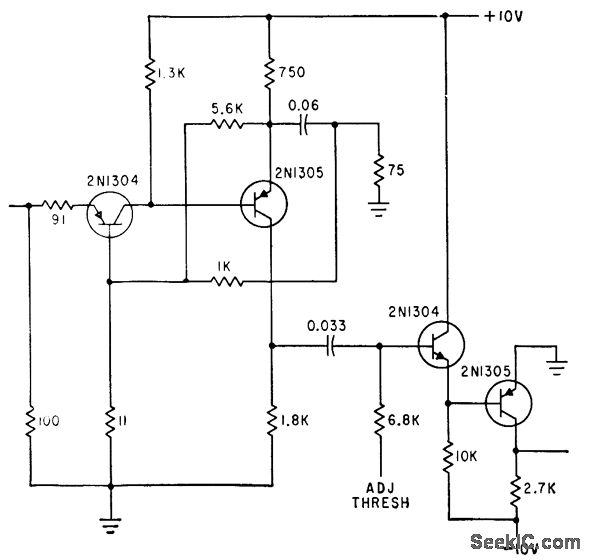

Used in programmed digital signal generator in which plug-in magnets set up program Input, nominally 100 mV, is amplified and clipped before it is gated with strobing pulse.-W. D. Woo, Novel Digital Signal Generator Uses Magnetic-Core Pegboard, Electronics, 35:27, p 46-49.
