CONSTANT_WIDTH_HIGH_CURRENT_PULSES

Published:2009/7/16 2:37:00 Author:Jessie | From:SeekIC

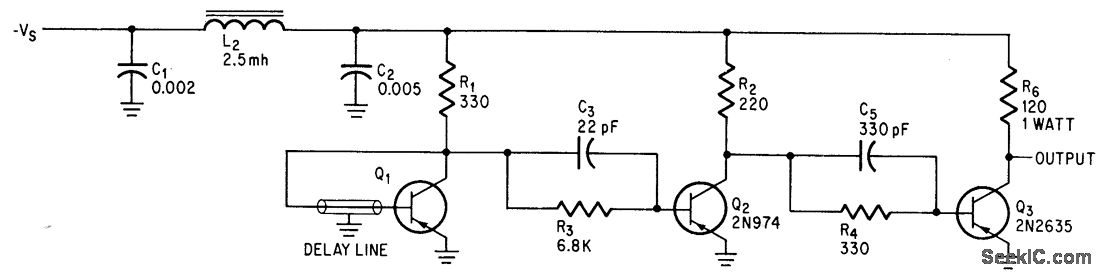

Circuit generates negative pulses from -2 to -12 v with rise and fall limes less than 30 nsec. Amplitude and spacing depend on supply voltage. For positive output pulses, use npn transistors and positive supply.- C. P. Hohberger, Fast Pulse Generator Tests Digital Circuit Delay, Electronics, 39:4, p 88-89.
