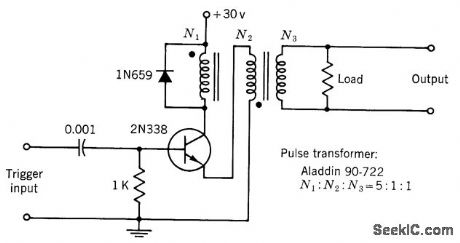

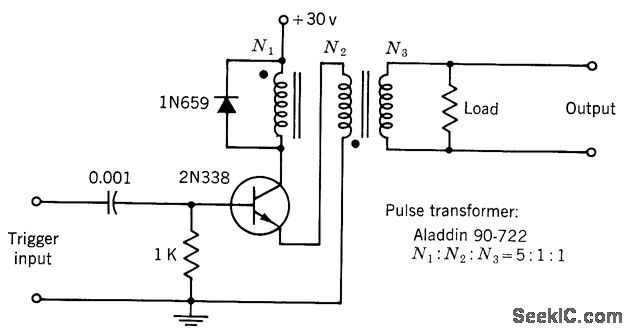

COMMON_BASE_BLOCKING_OSCILLATOR

Published:2009/7/16 3:16:00 Author:Jessie | From:SeekIC

Nonsaturating-type triggered blocking oscillator is used when fast response is desired. Often used as pulse generator when waveform requirements are not critical.-Texas Instruments Inc., Transistor Circuit Design, McGraw-Hill, N.Y., 1963, p 430.
