CMOS_ULTRASONIC_GENERATOR

Published:2009/7/14 21:18:00 Author:May | From:SeekIC

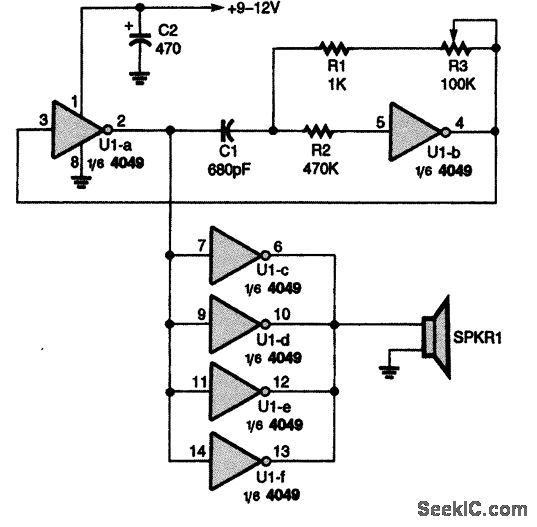

This ultrasonic generator uses a single CD4049IC. The frequency range is about 15 to 50 kHz.
