CM0006CF digit convergence singal process integrated circuit diagram

Published:2011/5/6 8:28:00 Author:Nicole | Keyword: digit convergence, singal process | From:SeekIC

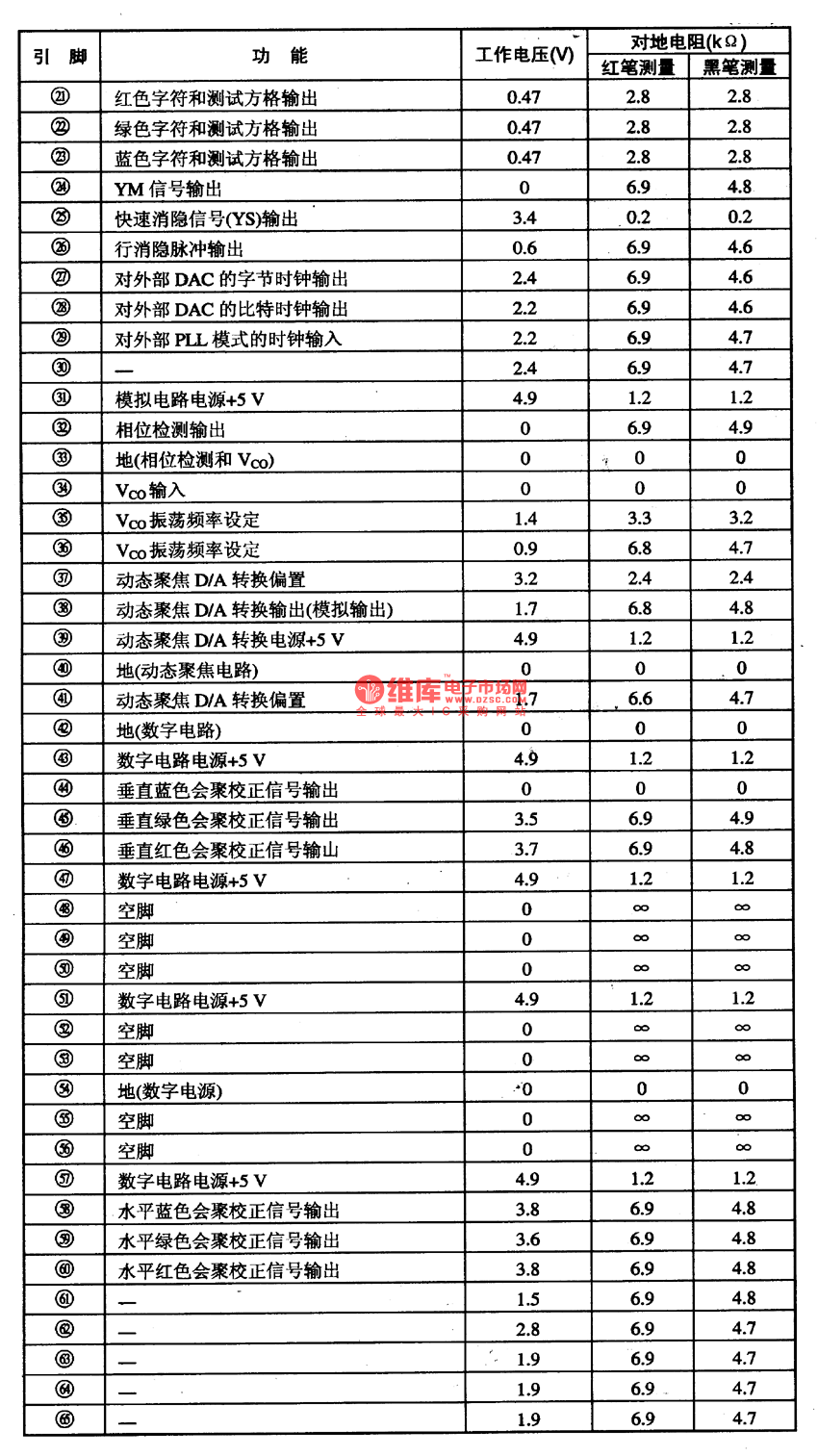

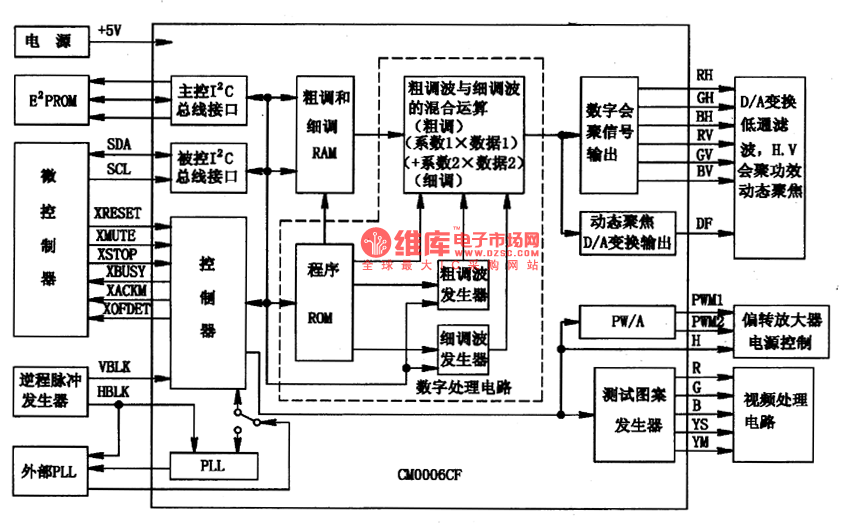

CM0006CF is a digit convergence singal process special integrated circuit, it is a rear projection TV special chip, such as Changhong 51PT28A rear projection, it adopts this integrated circuit. 1, functions and features CM0006CF integrated circuit contains row, field scanning singal position sampling circuit, A/D converter, field scanning waveform correction generator, row scanning waveform correction generator and combination operational circuit. It has multiple scanning format (PAL/NTSC/HDTV、interlaced scanning/progressive scanning、VGA), 6bit digital output terminal are used to convergence correct, a simulated output terminal is used to dynamic focusing, two 8bit width regulation pulse output terminal, besides, convergence correction uses the production function of grid image, order diagram and cursor. The internal circuit block diagram of this integrated block is shown in the figure1. The figure1 is the internal circuit block diagram of CMO006CF integrated block 2, pin function and data The pin function and data of CMO006CF integrated circuit is shown in the table1. The table is the pin function and data of CMO006CF integrated circuit
