CLUTTER_GENERATOR

Published:2009/7/24 2:38:00 Author:Jessie | From:SeekIC

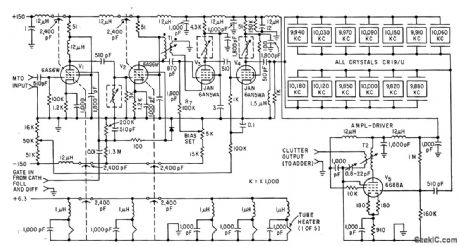

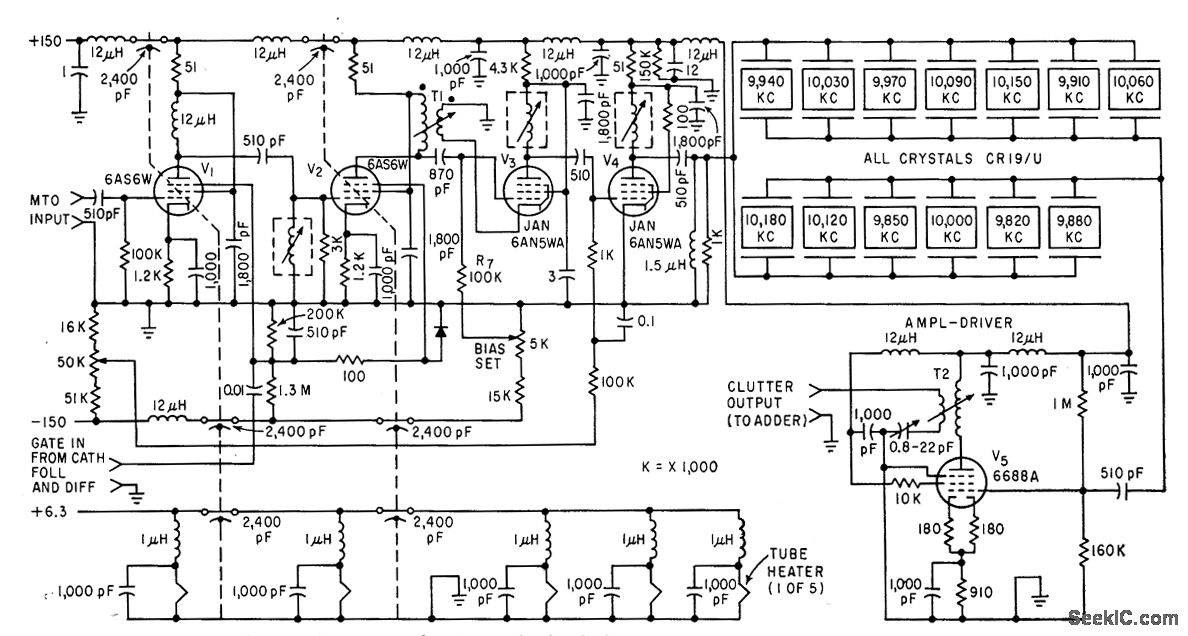

Simulates radar clutter received by rotating antenna on 550-mph aircraft, for checking airborne moving-target indicator on ground. Clutter is produced by ringing bank of closely spaced crystals and allowing resulting frequencies to beat together to produce jagged clutter return that decoys with range.-H. Lobenstein and A. R. Dial, Radar-Return Simulator Tests Moving-Target Indicators, Electronics, 33:49, p 58-60.
