CLAPP_JFET_VFO

Published:2009/7/24 2:41:00 Author:Jessie | From:SeekIC

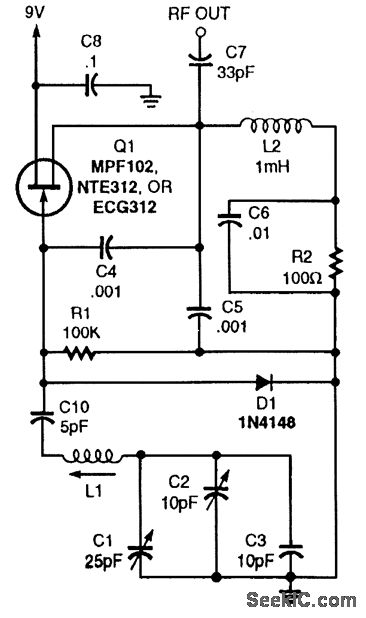

The JFET VFO circuit shown here can be identified as a Clapp oscillator by its series-tuned LC network. This circuit as shown can be used from 0.5 to 7 MHz.
