CASCADED_ONE_SHOTS_GENERATE_PULSES_IN_BURST

Published:2009/7/16 5:50:00 Author:Jessie | From:SeekIC

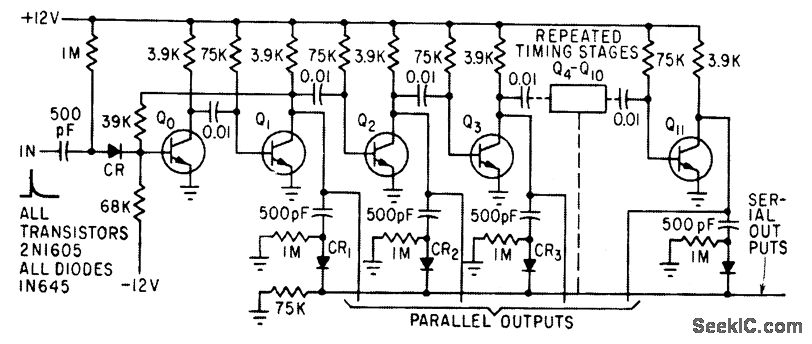

Addition of redundant stages to timing portion of conventional monostable mvbr permits generating bursts of eleven 2-kc pulses every 0.1 sec. Used for testing decimal counters at high counting rotes; each burst gives visible one-digit advance in readout because of 94.5-millisec time between bursts.-J. Gaon, Simple Counter Tester Uses Cascaded One-Shots, Electronics, 36:14, p 40-41.
