Published:2009/7/23 22:30:00 Author:Jessie | From:SeekIC

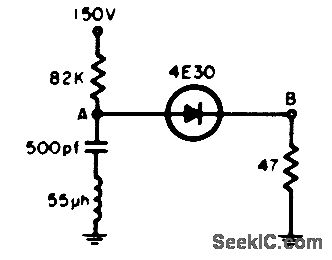

Inductor causes ringing and thereby extends operating frequency of sawtooth oscillator using four-layer diode. Will operate well above 100 kc.-P. Emile, Jr., Inductor Raises Useful Sawtooth Frequency, EEE, 12:7, p 28.
