BASIC_FUNCTION_GENERATOR

Published:2009/7/7 6:48:00 Author:May | From:SeekIC

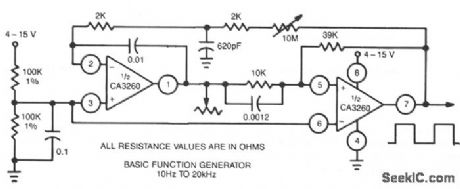

This function generator uses a CA3260 BiMOS Op amp to petform both the integrator and switchingfunctions．A 620-pF capacitor and 2-KΩ resistor shape feedback square wave to reduce spikes. Full audiospectrum, 10 Hz to 20 kHz,is covered with a single 10 Ω potentiometer. Requires 9-V battery.
